Equipment Used
- 300 Ton Minster
- 400 Ton Brown Boggs Press
Expertise
- Design
- Machining
- Heat Treat
- Grinding
- Wire EDM
Technical Specifications
Overall Part Dimensions: .313″ x 3.000″ x 18.000″
Tightest Tolerances: +/– .010″
Materials Used
- A1011 HSLA Grade 50 Class 1
In Process Inspection / Testing
- CMM
- Surface Profile Gage
Industry
New Buildings
Volume
40,000+ EAU
Delivery / Turn-Around Time
- Tool: 3-4 weeks
- Parts: 1 week
Location
Eastern Iowa

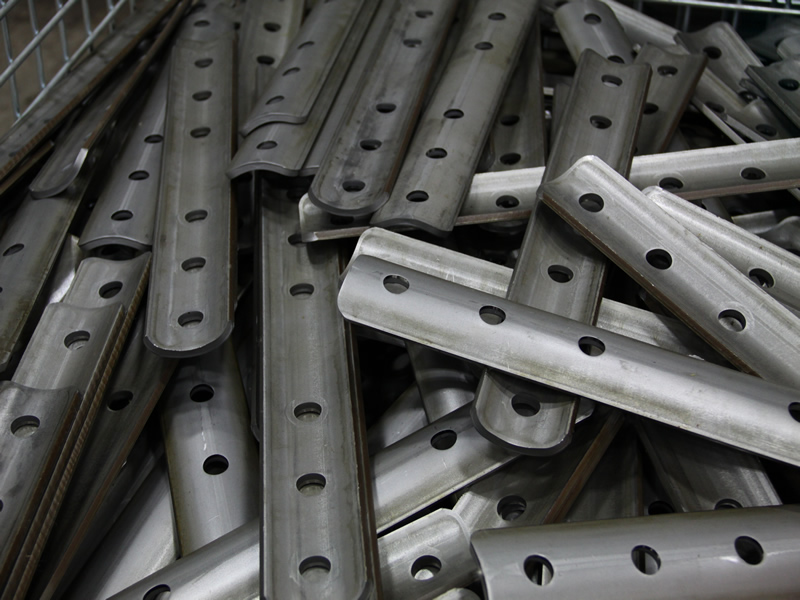

Product Name
Splice Bracket
Value Proposition
- Higher Quality Parts
- Structurally Reliant Holes with Minimal to No Distortion
Summary
A customer in the Fabric Structures business was having troubles with the hole quality being produced with brackets that play a vital role in the structural integrity of the buildings they produce. This customer was having their parts lasered and then formed. Die Makers worked with the customer to pin point their exact wants and needs. DMK then designed and produced a three station coil fed die to first crop the bracket, then form, and finally pierce (6) .656” holes on a 3” radius. Thus creating a part with zero hole distortion.
